Deployment 2011 to 2012

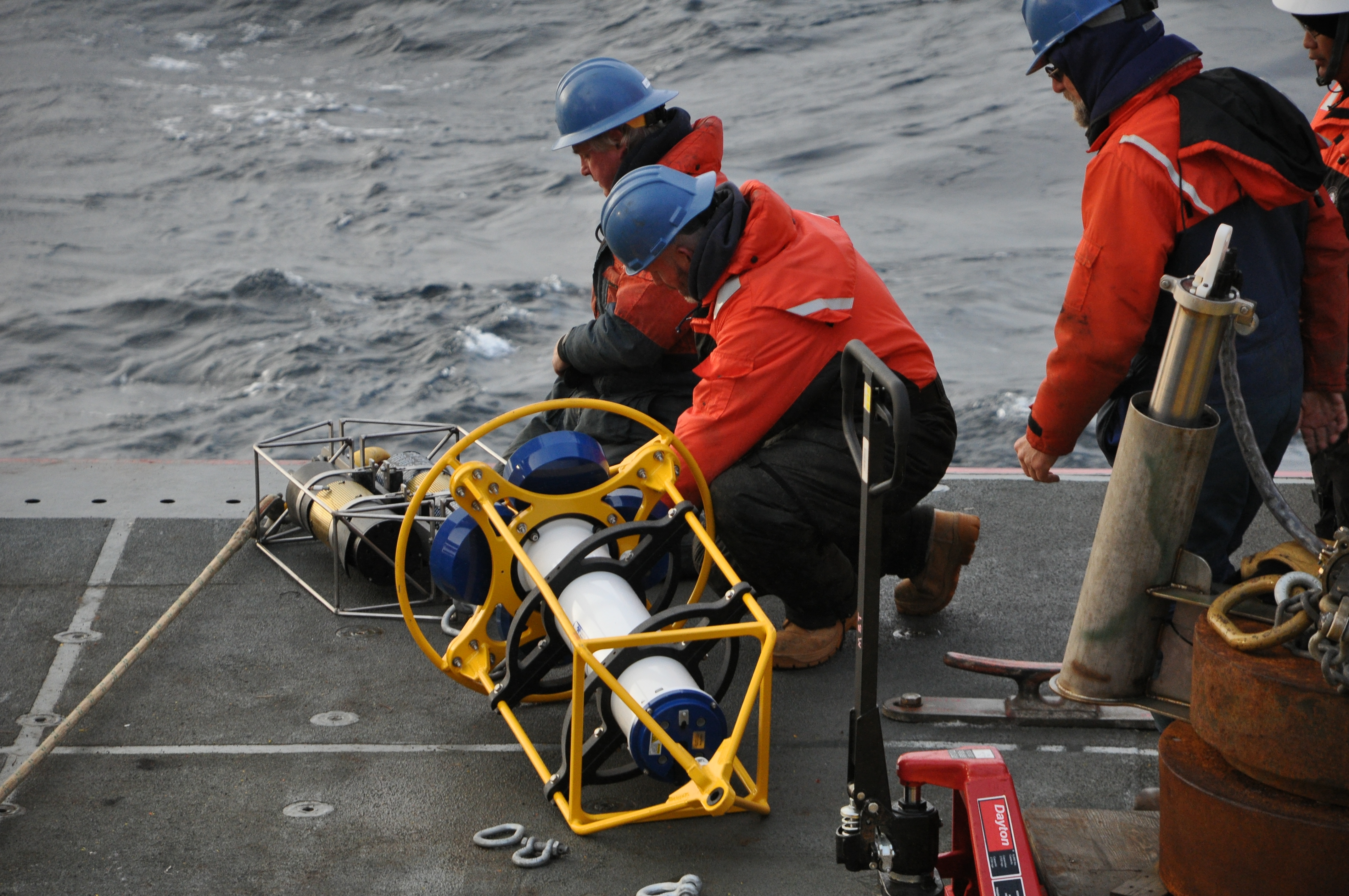

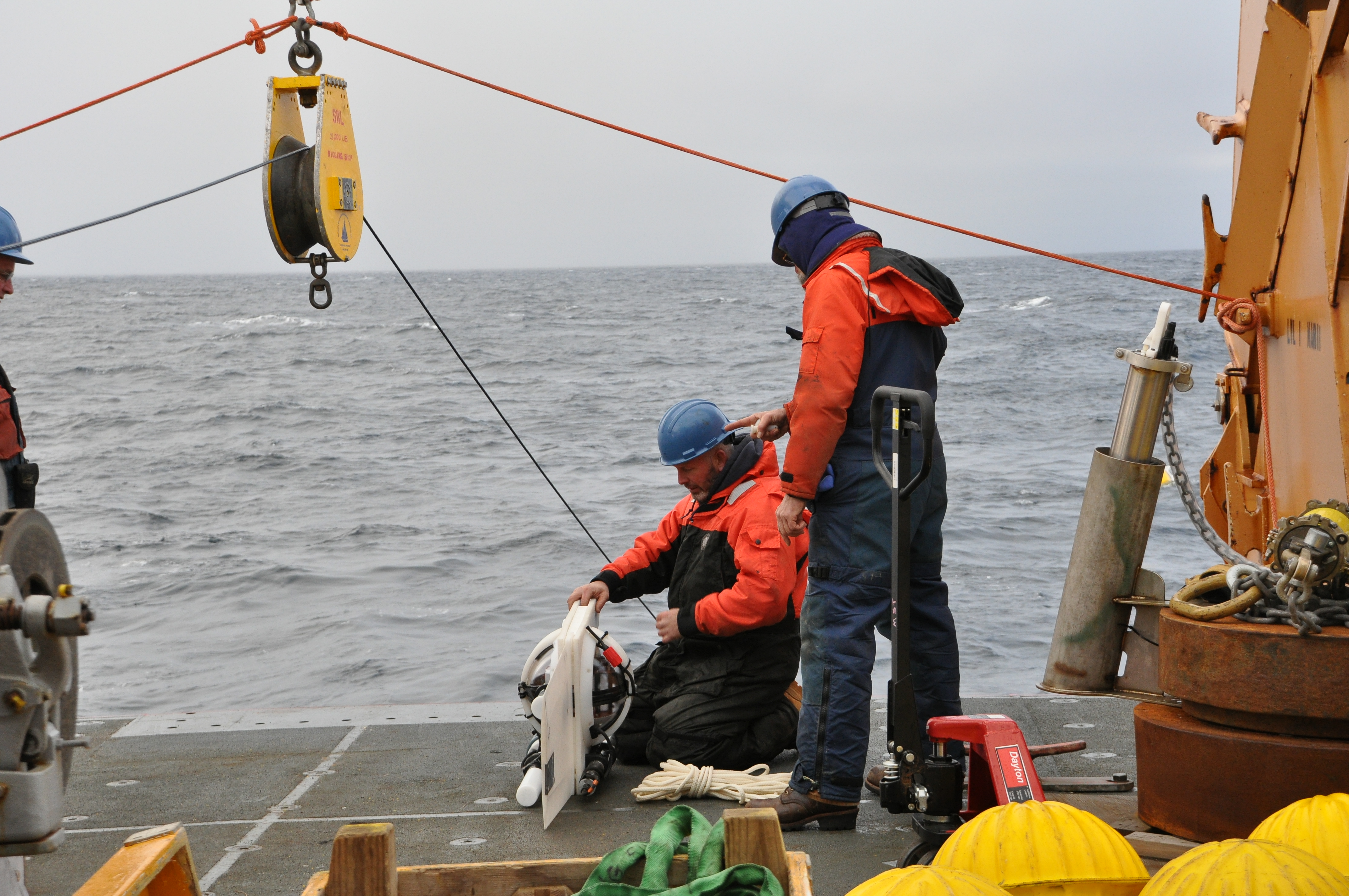

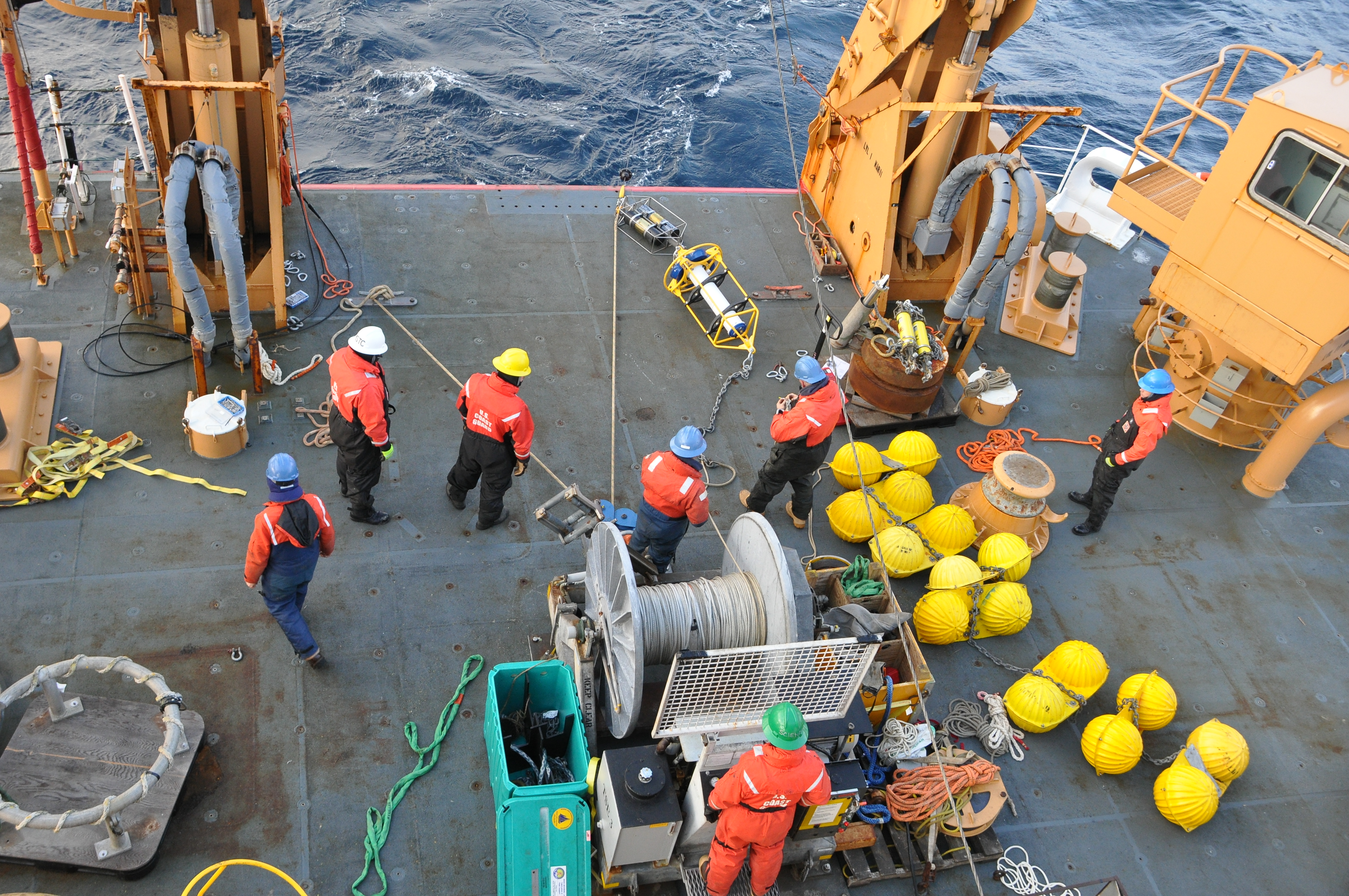

click the above thumbprints to enlarge; find more photos here

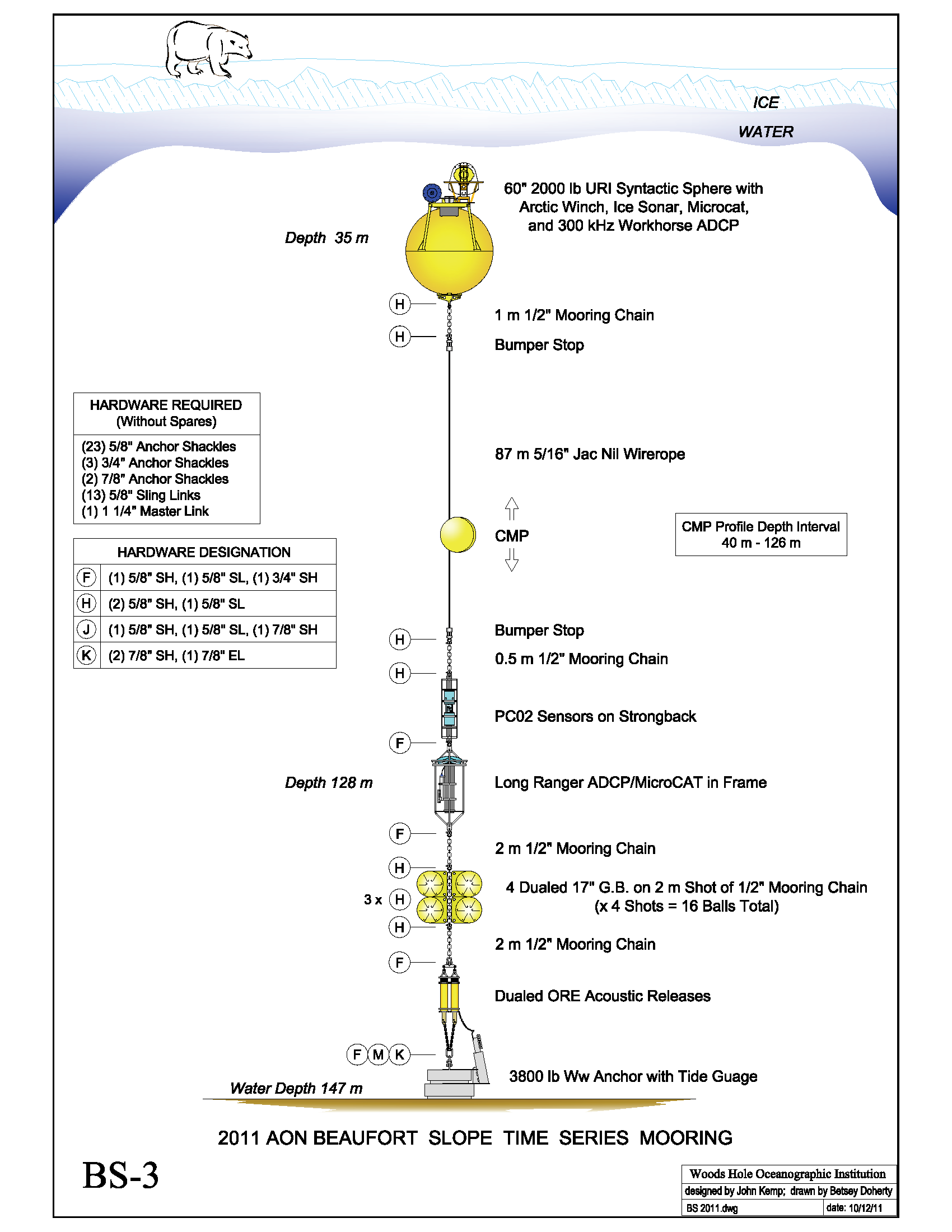

Click below to enlarge this jpeg version of the mooring diagram, or click here for the PDF version.



The mooring was deployed off the USCGC Healy on Oct 13, 2011 at 00:49:08 UTC
at 71° 23.645' N, 152° 2.908' W in 146.6 meters of water depth.
It was recovered on Oct 12, 2012 local, going into Oct 13 GMT.

Instrumentation included:
- 300KHz ADCP, on subsurface float
- SBE39 "microcat", on subsurface float
- ULS type 5 Ice Sonar, on subsurface float
- P-CO2 sensor below subsurface float (University of Alaska)
- coastal moored profiler "CMP"
- P-CO2 sensor near bottom (University of Alaska)
- 75KHz ADCP near bottom
- SBE39 "microcat" near bottom
- SBE52 pressure gauge near bottom

Note: We pulled the Arctic Winch off the BS3 sphere shortly before the deployment
because of disappointing data return from last year's BS3 and BC1 deployments. The BC1
winch only contained pre-deployment test data, while the BS3 winch had 3 days of CTD data.

The file aon11_notes.txt contains notes on the sensor setup prior to deployment in 2011.

The file bs3_201112_recover.txt contains notes on the instrument recovery for
the 2011->2012 deployment.
