Deployment 2012 to 2013

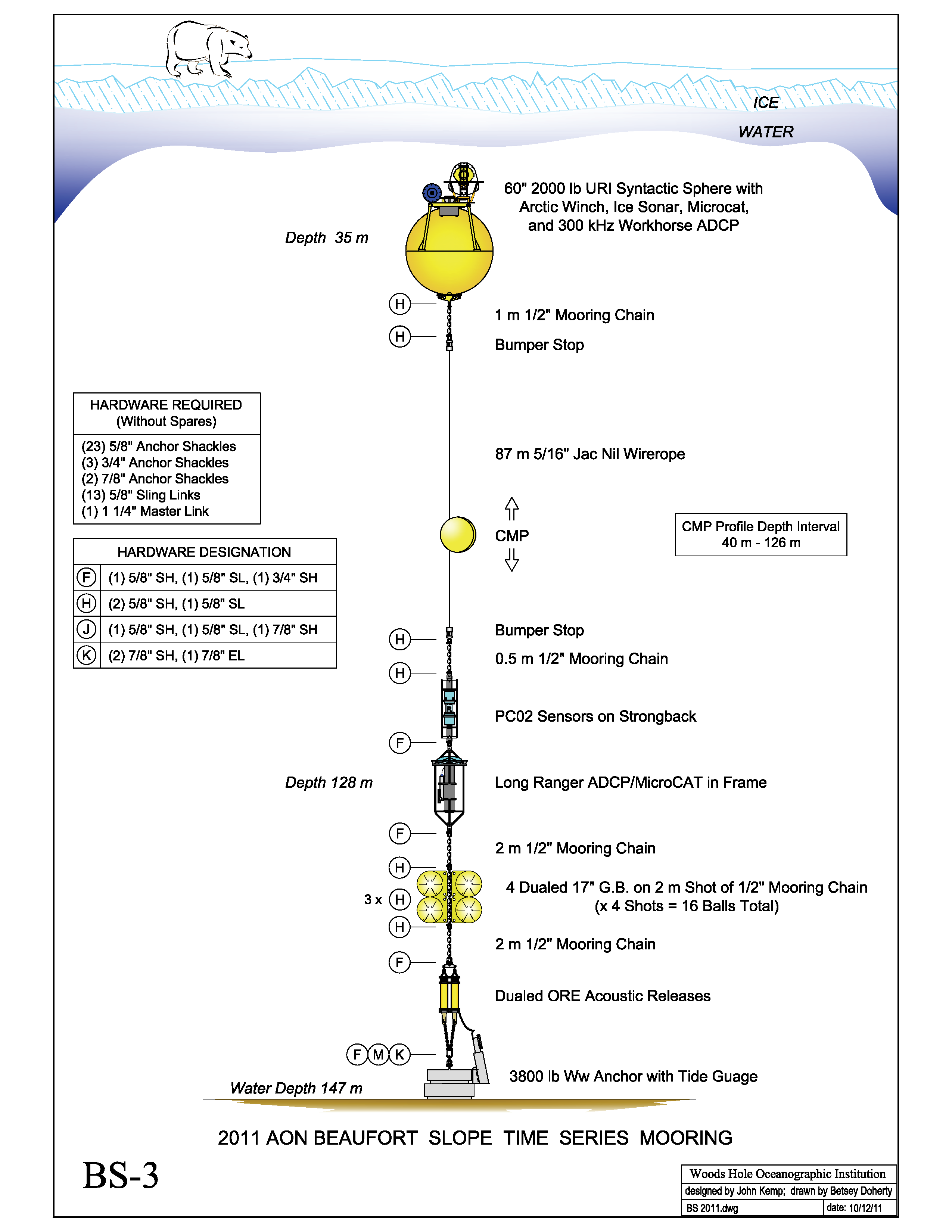

Click below to enlarge this jpeg version of the mooring diagram, or click here for the PDF version.



The mooring was deployed off the USCGC Healy on Oct 16, 2012 at 00:02 UTC
at 71° 23.64' N, 152° 2.91' W in 147 meters of water depth.
It was recovered on Oct 16, 2013, around 3pm UTC (after breakfast local).

Instrumentation included:
- 300KHz ADCP, on subsurface float
- SBE39 "microcat", on subsurface float
- ULS type 5 Ice Sonar, on subsurface float
- P-CO2 sensor below subsurface float (University of Alaska)
- coastal moored profiler "CMP"
- P-CO2 sensor near bottom (University of Alaska)
- 75KHz ADCP near bottom
- SBE39 "microcat" near bottom
- SBE52 pressure gauge near bottom

Note: We pulled the Arctic Winch off the BS3 sphere shortly before the deployment
because of disappointing data return from last year's BS3 and BC1 deployments. The BC1
winch only contained pre-deployment test data, while the BS3 winch had 3 days of CTD data.

The S-ADCP web page for the cruise HLY1203 contains a section about the sensor setup.
