The mooring was deployed off the USCGC Healy on Aug 4, 2009 local time,
close to midnight GMT, at 71° 23.627' N, 152° 3.820' W.
It was recovered on Sept 13, 2010.
Instrumentation included:

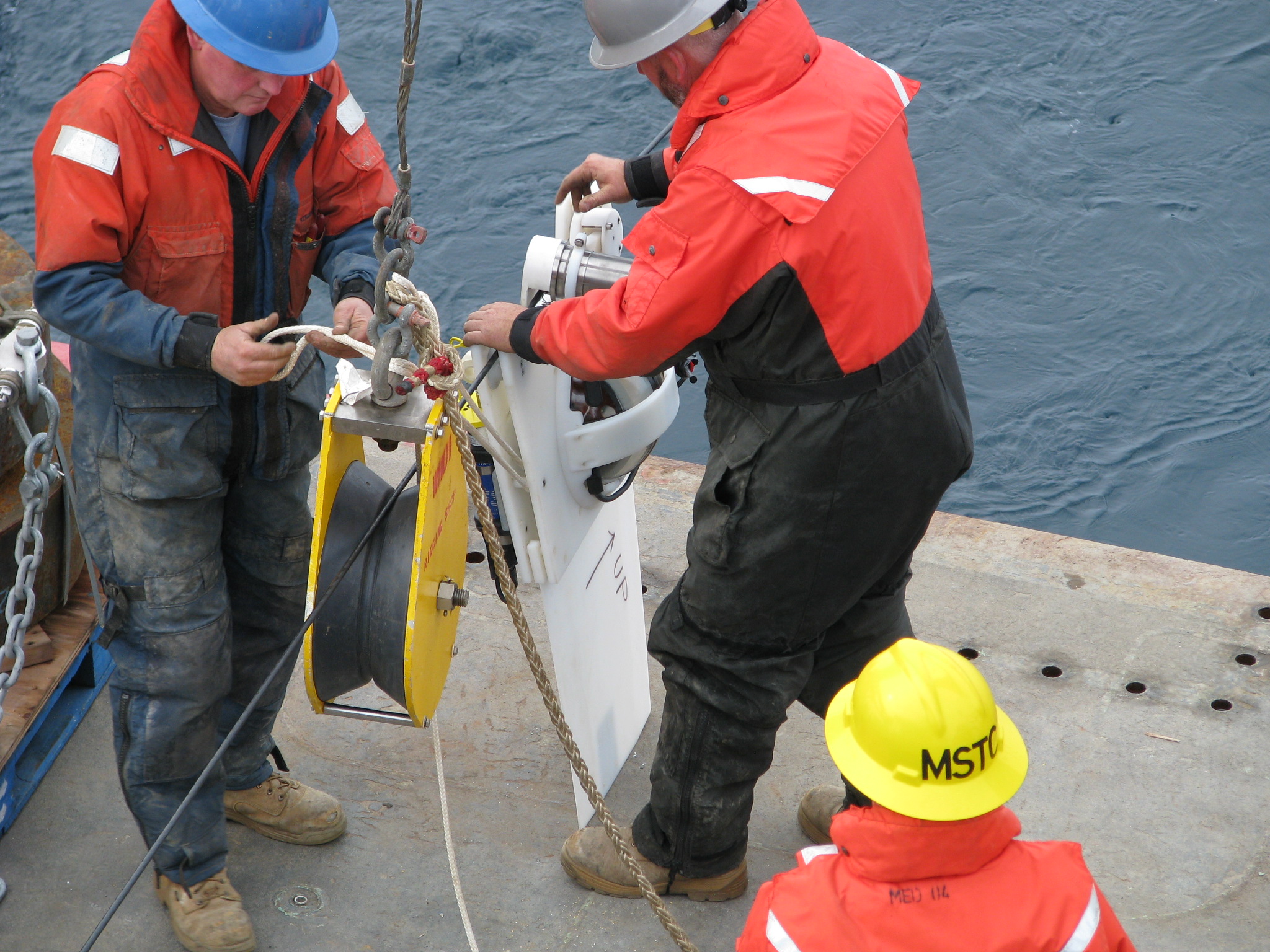

- Arctic Winch, on subsurface float
- 300KHz ADCP, on subsurface float
- SBE39 "microcat", on subsurface float
- ULS type IPS5 Ice Sonar, on subsurface float
- coastal moored profiler "CMP"
- 75KHz ADCP near bottom
- SBE39 "microcat" near bottom
- SBE52 pressure gauge near bottom

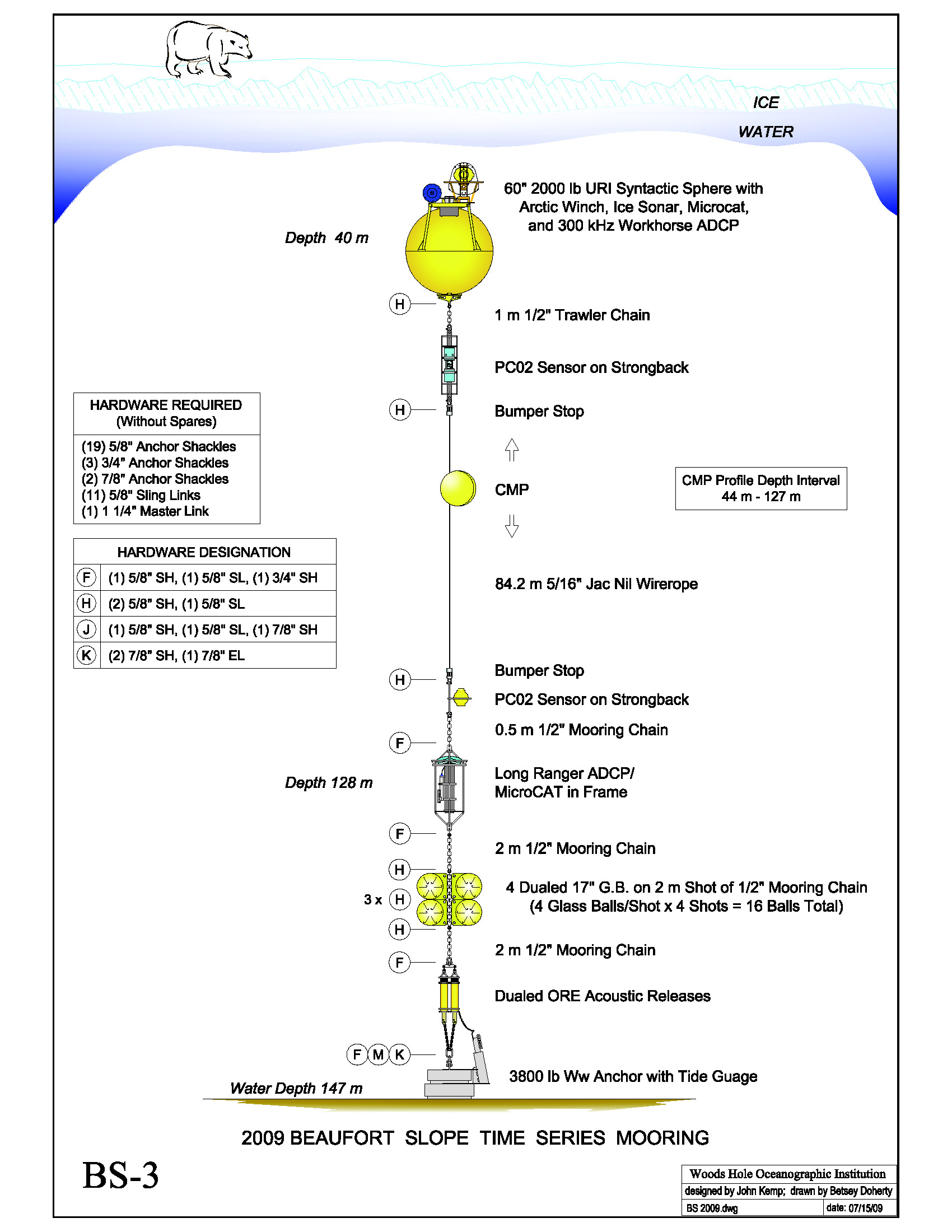

The mooring diagram also lists a PCO2 sensor, but I do not recall it nor see it
in my pictures from the mooring launch.
